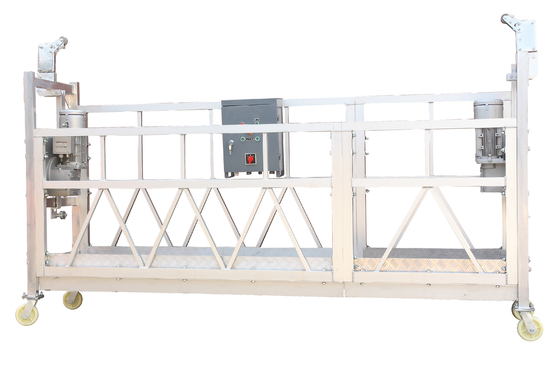

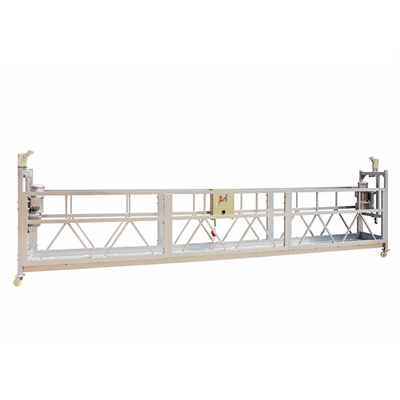

ZLP630 Temporarily Installed Suspended Work Platform Adjustable 9.6 m/min

Large Image : ZLP630 Temporarily Installed Suspended Work Platform Adjustable 9.6 m/min Get Best Price

Product Details:

Place of Origin:	WUXI, CHINA
Brand Name:	SHENXI
Certification:	CE & SGS
Model Number:	ZLP630

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	USD3000
Packaging Details:	Standard
Delivery Time:	5-7 working days
Payment Terms:	T/T & L/C
Supply Ability:	500-700 sets per month

Contact Now

Detailed Product Description

High Light:

adjustable work platform

suspended access cradles

ZLP630 Temporarily Installed Suspended Work Platform Adjustable 9.6 m/min

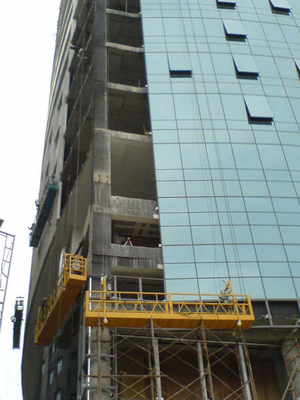

A kind of Temporarily Installed Suspended Access Equipment, also known as Suspended Platform or Temporary Access Equipment, is a lightweight aluminum-made object capable of carrying persons onto a certain height so as to facilitate the aerial work, such as maintenance, decoration, cleaning, etc.

It is easy for operation, flexible for moving, reliable in safety. Besides, it is not necessary to build scaffolding in the construction, the efficiency will be promoted and the cost will be reduced.Therefore, Shenxi ZLP series versatile knock-down platforms provides workers safer, easier and more efficient platform access.

Specifications:

Item				Parameters
Rated capacity				630 kg
Rated speed				9.6 m/min
Platform length				2 m*3
Steel rope				4*31-8.6mm

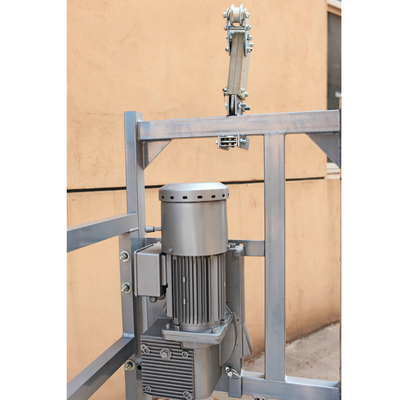

Hoist	Hoist model			LTD6.3
	Rated lifting force			6.3 kN
	Motor	Model		YEJ90L-4
		Power		1.5kW
		Phase		3 phase
		Speed		1420 r/m
		Brake force moment		15 Nm
Safety lock	Configuration			Anti-tilting
	Permission force of impact			30 kN
	Locking Cable Distance			＜100mm
	Locking Cable Angle			3°～8°
Suspension mechanism	Front beam overhang			1.3-1.7 m
	Height adjustment			1.365 -1.925 m
Weight	Lifting part (including hoist, safety lock and electric control system)		Steel Platform	450 kg
			Aluminum platform	330 kg
	Suspension mechanism			310kg
	Counter weight			900 kg
