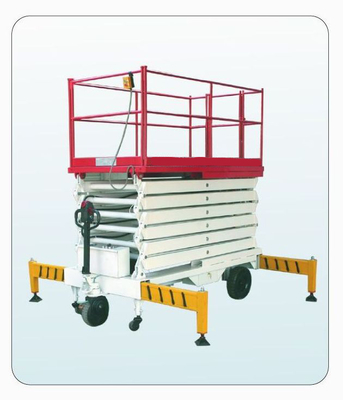

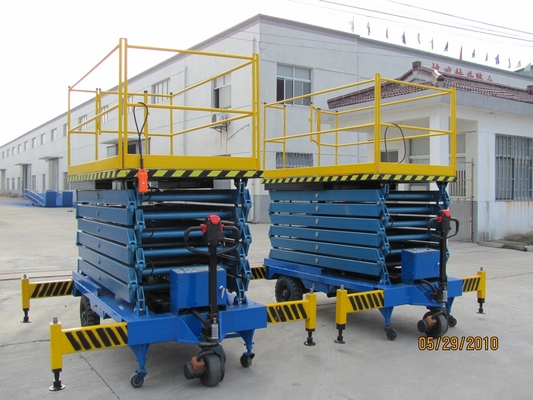

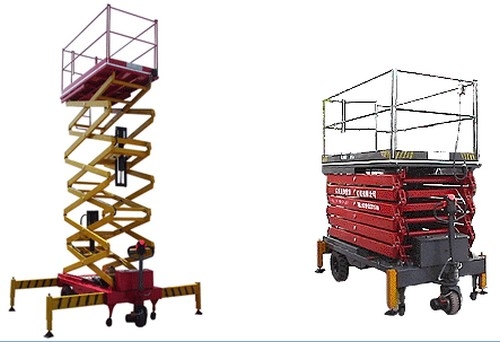

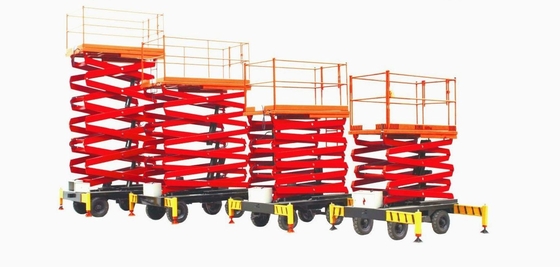

DC 24V Self Propelled Aerial Working Platform For Factory , Hotel

DC 24V Self Propelled Aerial Working Platform For Factory , Hotel
DC 24V Self Propelled Aerial Working Platform For Factory , Hotel DC 24V Self Propelled Aerial Working Platform For Factory , Hotel DC 24V Self Propelled Aerial Working Platform For Factory , Hotel DC 24V Self Propelled Aerial Working Platform For Factory , Hotel

Large Image :  DC 24V Self Propelled Aerial Working Platform For Factory , Hotel Get Best Price

Product Details:
Place of Origin: WUXI, CHINA
Brand Name: SHENXI
Certification: CE & SGS
Model Number: SJY-X
Payment & Shipping Terms:
Minimum Order Quantity: One set
Packaging Details: Standard
Delivery Time: 10 working days
Payment Terms: T/T & L/C
Supply Ability: 180 sets per month
Detailed Product Description
High Light:

elevated work platform

,

aerial working platforms

DC 24V Self Propelled Aerial Working Platform For Factory , Hotel



Descrition:

     The cylinder aerial working platform is used for lifting vertically by multi-hydraulic cylinders, which is of high strength materials and good mechanic property. Together with its tower-shaped safety guards, this platform is much more stable. Even in the place as high as 20 meters above the ground, it still features the excellent balance performance.
  Application: used in factory, hotel, mansion, store, station, airport, stadium, etc.
  Main Usages: for aerial work such as the installation and maintenance for electric networks, lighting equipments, overhead pipelines and the single work for aerial cleaning
  Power options: AC 220V (standard configuration), AC 380V power supply, DC power supply and manual pump.

    It is a kind of hydraulic work platform with a scissor structure, mainly used for facilitating work at height and designed to enhance productivity in the workplace.

Such kind of aerial work platform can be powered by chargeable battery and is able to walk and turn directions at will without being directed by any person.

All models of scissors aerial work platform can be changed into self-propelled hydraulic lift table if necessary.





Key Features of Self-propelled Hydraulic Lift Table

-flexibility in moving and installing

-portable battery-powered, optional electricity source

-made of high strength steel, solid enough to carry huge load

-exceptional maneuverability and working efficiency

-completely comply with the safety rules and regulations



Specifications:



Model

Rated load
kg

Max height
mm

Min height
mm

Dimension of
platform L3W
(mm)

Lifting time
(s)

Power of motor
(kw)

Voltage
v

Walking speed m/min

Weight of whole kg

SJY-X-0.3-6

300

6000

1100

1800*900

35

1.5

DC-24V

10

1250

SJY-X-0.5-6

500

6000

1100

1800*900

38

1.5

DC-24V

10

1250

SJY-X-0.3-9

300

9000

1550

2000*1000

72

1.5

380V/50Hz

10

1200

SJY-X-0.5-9

500

9000

1550

2000*1000

81

1.5

380V/50Hz

10

1300

SJY-X-0.3-11

300

11000

1600

2100*1200

73

2.2

380V/50Hz

10

1320

SJY-X-0.5-11

500

11000

1600

2100*1200

80

2.2

380V/50Hz

10

1380

SJY-X-0.3-12

300

12000

1750

2400*1500

90

3

380V/50Hz

10

1700

SJY-X-0.5-12

500

12000

1750

2400*1500

90

3

380V/50Hz

10

2000

SJY-X-0.3-14

300

14000

1800

2600*1500

90

4

380V/50Hz

10

2400

SJY-X-0.5-14

500

14000

1800

2600*1500

132

4

380V/50Hz

10

2700

SJY-X-0.3-16

300

16000

1980

2700*1500

100

4

380V/50Hz

10

3150
