900 / 2000 / 4000 kg Electric Fork Fixed Hydraulic Lifting Platform

China 900 / 2000 / 4000 kg Electric Fork Fixed Hydraulic Lifting Platform supplier

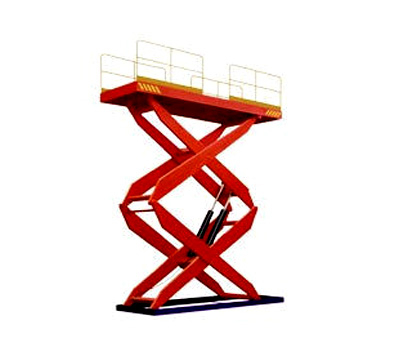

Large Image :  900 / 2000 / 4000 kg Electric Fork Fixed Hydraulic Lifting Platform

Product Details:

Place of Origin: WUXI, CHINA
Brand Name: SHENXI
Certification: CE & SGS
Model Number: SJG

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: Standard
Delivery Time: 8 working days
Payment Terms: T/T & L/C
Supply Ability: 80 sets per month
Detailed Product Description

900 / 2000 / 4000 kg Electric Fork Fixed Hydraulic Lifting Platform

Descrition:
 The fixed hydraulic lifting platform is a kind of lifting equipment for various materials and environments with a stable lifting performance. It is mainly used for delivering goods between places of an altitude difference in the production line, feeding and blanking, adjusting the height of the work piece when installed, feeding the feeder machine in a higher place, lifting components when the large equipment is installed, loading and unloading materials for the large bed and goods in the storage and loading yard together with transport vehicles such as fork trucks.
According to the operation requirement, this fixed hydraulic lifting platform can be equipped together with other attachments without the limit in number and in the combination method, thus to achieve a better running effect.

Applications:
-mass goods transporting for assembly lines between areas of different heights
-for raising or lowering materials in assembly lines
-used for adjusting the height of work pieces
-transporting materials for loading machine at height
-to lift machine parts while assembling large equipment
-loading and unloading cargos in warehouse

Specifications:

Model

Rated load
kg

Min height
mm

Lifting stroke
mm

Max height
mm

Dimension of platform L3W
(mm)

Lifting time
(s)

Voltage
v

Power of motor
(kw)

Weight of whole
kg

Fixed hydraulic lifting platform(Fork)

SJG0.9-0.5

900

200

500

680

1220*700

15

380v/50hz

0.75

400

SJG0.9-0.85

900

200

850

1030

1220*700

16

380v/50hz

0.85

400

SJG0.9-0.97

900

230

970

1200

1500*700

19

380v/50hz

1.5

450

SJG2-1.2

2000

230

1200

1430

1680*1000

31

380v/50hz

3

600

SJG0.9-0.9

900

230

900

1100

1300*1000

31

380v/50hz

1.5

500

SJG0.9-0.85

900

230

850

1080

1400*1000

31

380v/50hz

1.5

520

SJG2-1.2

2000

250

1200

1410

1680*1000

39

380v/50hz

3

620

SJG4-1.2

4000

340

1200

1540

2000*1000

56

380v/50hz

5.5

1500

SJG4-0.5

4000

480

500

980

2800*2000

20

380v/50hz

5.5

2500

SJG1-0.5

1000

830

500

1330

3500*1800

17

380v/50hz

22

5500

SJG1-2.8

1000

460

2800

3260

2200*1000

25

380v/50hz

1.5

600

Fixed hydraulic lifting platform(Dual fork)

SJG0.8-1.2

800

300

1200

1500

1200*1000

16

380v/50hz

1.1

420

SJG1-1.7

1000

350

1700

2050

1500*1000

28

380v/50hz

1.5

600

SJG2-1.2

2000

335

1200

1535

1500*1000

23

380v/50hz

3

650

SJG2-2.4

2000

500

2400

2900

2000*1500

25

380v/50hz

3

900

SJG1-1.6

1000

400

1600

2000

1500*1200

41

380v/50hz

1.5

860

SJG2-2

2000

620

2000

2620

2200*1200

40

380v/50hz

3

1300

SJG2-1.2

2000

415

1200

1615

1600*1600

30

380v/50hz

3

1100

SJG4-2.3

4000

660

2300

2960

2200*1000

53

380v/50hz

5.5

1500

SJG3-1.5

3000

460

1500

1960

1700*1000

50

380v/50hz

4

1450

Competitive Advantage:
-well-designed and compact structure makes it run stably and safely
-solid enough to lift huge load
-ease of adjustment, any other equipment can be affiliated and the base design can be adjusted to meet the special needs and requirements
-continuing work possibly can increase productivity and reduce costs and save time
