Hanging Scaffold Systems Rope Suspended Platform ZLP630 630 kg 4T31

Hanging Scaffold Systems Rope Suspended Platform ZLP630 630 kg 4T31
Hanging Scaffold Systems Rope Suspended Platform ZLP630 630 kg 4T31

Large Image :  Hanging Scaffold Systems Rope Suspended Platform ZLP630 630 kg 4T31 Get Best Price

Product Details:
Place of Origin: WUXI, CHINA
Brand Name: SHENXI
Certification: CE & SGS
Model Number: ZLP630
Payment & Shipping Terms:
Minimum Order Quantity: One set
Packaging Details: Standard
Delivery Time: 5-7 working days
Payment Terms: T/T & L/C
Supply Ability: 500-700 sets per month
Detailed Product Description
High Light:

aluminium access platforms

,

Suspended Rope Platform

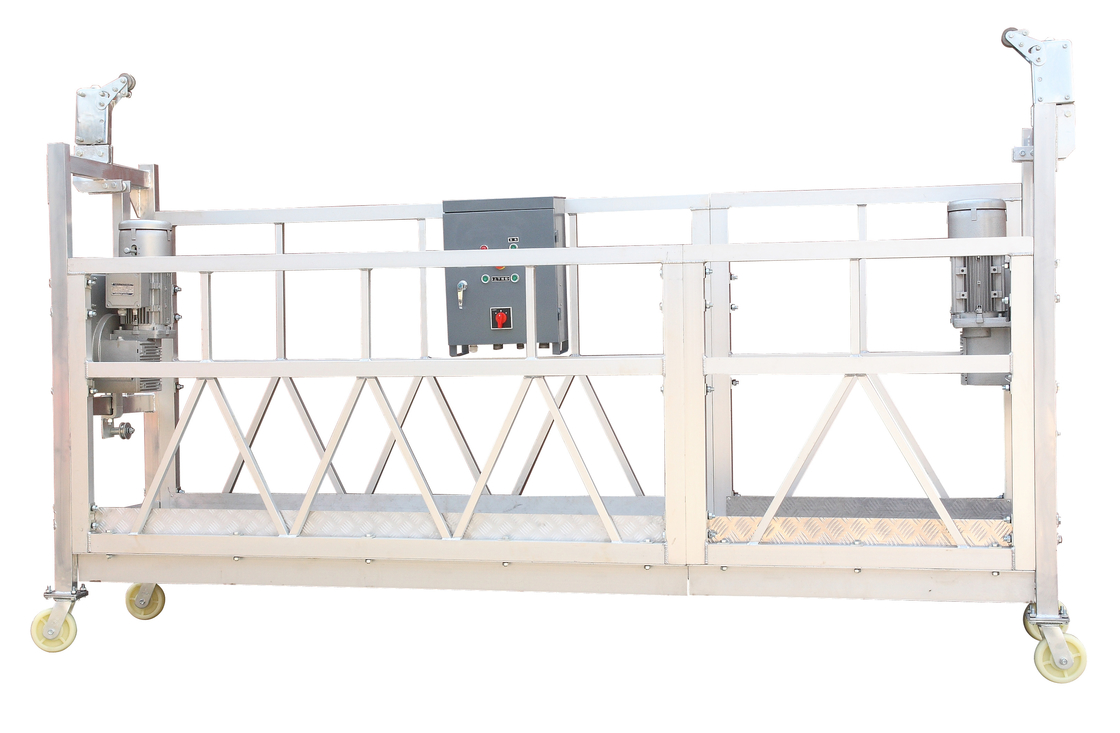

Hanging Scaffold Systems Rope Suspended Platform ZLP630 630 kg 4T31



Descrition:



A kind of Temporarily Installed Suspended Access Equipment, also known as Suspended Platform or Temporary Access Equipment, is a lightweight aluminum-made object capable of carrying persons onto a certain height so as to facilitate the aerial work, such as maintenance, decoration, cleaning, etc.


It is easy for operation, flexible for moving, reliable in safety. Besides, it is not necessary to build scaffolding in the construction, the efficiency will be promoted and the cost will be reduced.Therefore, Shenxi ZLP series versatile knock-down platforms provides workers safer, easier and more efficient platform access.



Specifications:



Item

Parameters

Rated capacity

630 kg

Rated speed

9.6 m/min

Platform length

2 m*3

Steel rope

4T31

Hoist

Hoist model

LTD6.3

Rated lifting force

6.3 kN

Motor

Model

YEJ90L-4

Power

1.5kW

Phase

3 phase

Speed

1420 r/m

Brake force moment

15 Nm

Safety lock

Configuration

Anti-tilting

Permission force of impact

30 kN

Locking Cable Distance

<100mm

Locking Cable Angle

3°~8°

Suspension mechanism

Front beam overhang

1.3-1.7 m

Height adjustment

1.365 -1.925 m

Weight

Lifting part (including hoist, safety lock and electric control system)

Steel Platform

450 kg

Aluminum platform

330 kg

Suspension mechanism

310kg

Counter weight

900 kg



Competitive Advantage:



-Made of high strength aluminum alloy

-Powered by new motor system

-A suspended access platform with sufficient capacity to carry huge load.

-Access to any manner of buildings or constructions

-Size of platform can be adjusted on request

-Used mainly for maintenance and construction work concerning unapproachable buildings or objects such as huge tanks, ships, dams, etc.
