ZLP100 3kN Lifting Force Single Hanging Scaffold Systems High Ssafety

ZLP100 3kN Lifting Force Single Hanging Scaffold Systems High Ssafety
ZLP100 3kN Lifting Force Single Hanging Scaffold Systems High Ssafety ZLP100 3kN Lifting Force Single Hanging Scaffold Systems High Ssafety

Large Image :  ZLP100 3kN Lifting Force Single Hanging Scaffold Systems High Ssafety Get Best Price

Product Details:
Place of Origin: WUXI, CHINA
Brand Name: SHENXI
Certification: CE & SGS
Model Number: ZLP100
Payment & Shipping Terms:
Minimum Order Quantity: One set
Packaging Details: Standard
Delivery Time: 5-7 working days
Payment Terms: T/T & L/C
Supply Ability: 500-700 sets per month
Detailed Product Description
High Light:

adjustable work platform

,

suspended access equipment

ZLP100 3kN Lifting Force Single Hanging Scaffold Systems High Ssafety



Descrition:

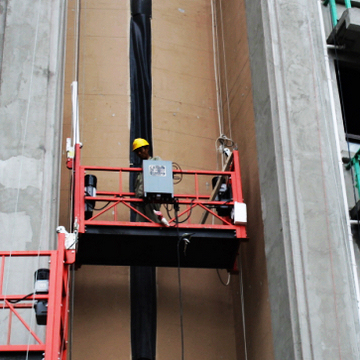

It is a kind of Suspended Access Equipment, also known as Temporary Access Equipment, widely used for cleaning and maintenance work on the confined areas, such as high buildings, large-size tank, ship, and bridge, etc.

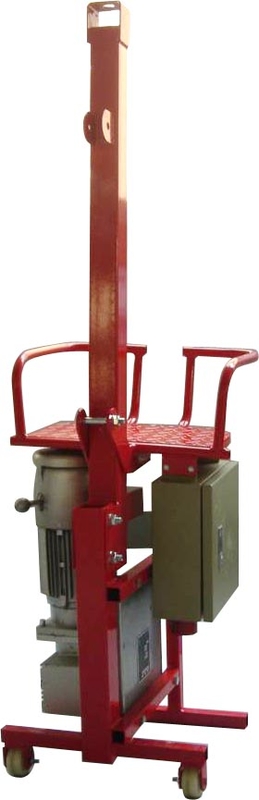

Key features of Single Person Suspended Platform

–single hoisting machine, using centrifugal safety lock

–proper structure, easy to operate, and safety securely guaranteed

–fast to assemble and disassemble, less cost to rigging work

–easy to store



Specifications:



Capacity

100kg

Speed

8-9m/min

Size (mm)

470×520×1690

Wire rope

φ8.3

Hoist

Rated lifting force

3kN

Motor

Model

YEJ801-4

Power

0.75kW

Voltage

380V

Rotate speed

1400r/mim

Braking torque

7.5Nm

Safety lock

Rated capacity

>800kg

Lock distance

<100mm

Lock speed

>22m/min

Weight

80kg

ZLP100 3kN Lifting Force Single Hanging Scaffold Systems High Ssafety 0
