Hanging Scaffold Suspended Access Platform Systems ZLP100 with YEJ801-4 Motor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | hanging scaffold systems,adjustable work platform |
||
|---|---|---|---|
Hanging Scaffold Suspended Access Platform Systems ZLP100 with YEJ801-4 Motor
Descrition:

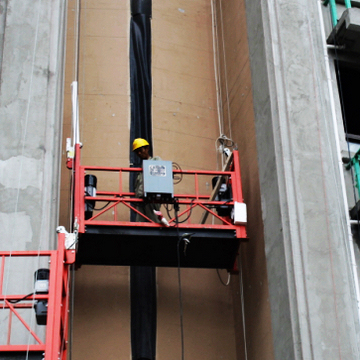

It is a kind of Suspended Access Equipment, also known as Temporary Access Equipment, widely used for cleaning and maintenance work on the confined areas, such as high buildings, large-size tank, ship, and bridge, etc.
Key features of Single Person Suspended Platform

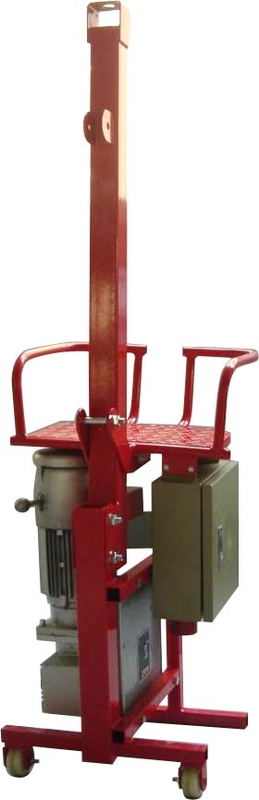

–single hoisting machine, using centrifugal safety lock
–proper structure, easy to operate, and safety securely guaranteed
–fast to assemble and disassemble, less cost to rigging work
–easy to store
Specifications:
|
Capacity |
100kg |
||
|
Speed |
8-9m/min |
||
|
Size (mm) |
470×520×1690 |
||
|
Wire rope |
φ8.3 |
||
|
Hoist |
Rated lifting force |
3kN |
|
|
Motor |
Model |
YEJ801-4 |
|
|
Power |
0.75kW |
||
|
Voltage |
380V |
||
|
Rotate speed |
1400r/mim |
||
|
Braking torque |
7.5Nm |
||
|
Safety lock |
Rated capacity |
>800kg |
|
|
Lock distance |
<100mm |
||
|
Lock speed |
>22m/min |
||
|
Weight |
80kg |
||
