1000 kg Single Mast Climbing Work Platform for Working Height 100 m

China 1000 kg Single Mast Climbing Work Platform for Working Height 100 m supplier

Large Image :  1000 kg Single Mast Climbing Work Platform for Working Height 100 m

Product Details:

Place of Origin: Wuxi, China
Brand Name: SHENXI
Certification: CE & SGS
Model Number: STC100

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: Standard and plywood case
Delivery Time: 15 working days
Payment Terms: T/T & L/C
Supply Ability: 80 sets per month
Detailed Product Description

1000 kg Single Mast Climbing Work Platform for Working Height 100 m



Descrition:

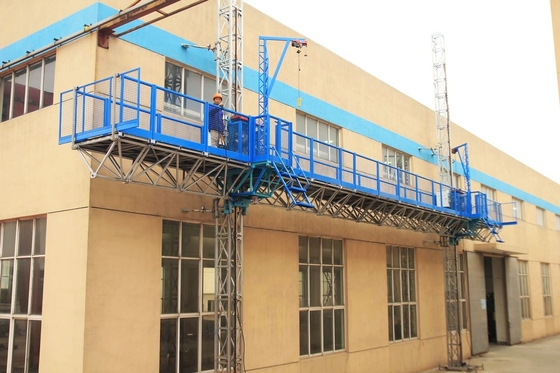

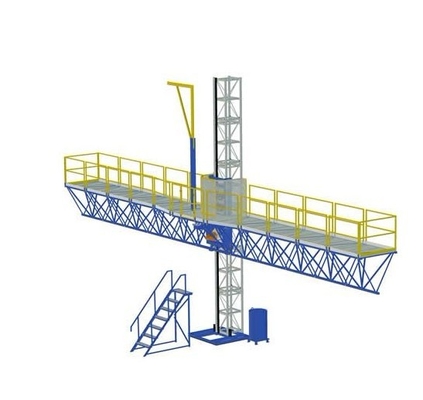

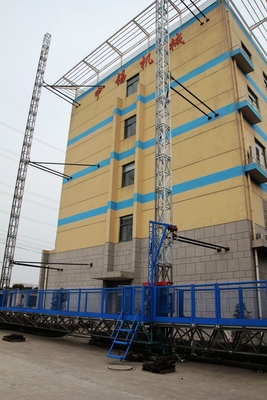

Mast climbing work platform is Shenxi's newly-researched and designed aerial work equipment, which adopts the latest technological advances and develops on the basis of traditional suspended access platform. It embodies lots of superior features and does play an indispensable part in large-scale construction work at height, especially in worksites where the suspending mechanisms are unable to install.

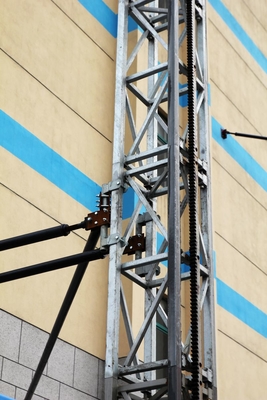

The main parts of  Mast climbing work platform can be interchanged with building hoist such as mast sections, rack, pinion, reducing device and so on. And its width and length can be changed according to requirement. It is requisite equipment in construction job. Additionally. It is no need for foundation so that it is easy to change the working site



Specifications:





Single Mast

Double Mast

Rated Capacity

1000 kg

1700 kg

Rated Lifting Speed

8.3 m/min

Max. Working Height

100 m

Max. Height of Stand-alone Installation

7.5 m

Length of Platform

8.67 m

20.34 m

BasicWidth of Platform

1.5 m

Max.Width of Platform

2.5 m

Size of Standard Section

1508×500×500 mm

Motor

Type

YZZ 132 S1-4

Power

2×5.5 kW

4×5.5 kW

Rated Rotation

Speed

1400 r/min

Rated current

13.5 A

Brake

Brake Torque

100 N.m

Exciter Voltage

DC 195 V

Reducer

Type

TU 65 C/125-63

Transmission Ratio

1:63 / 1300 N.m

Power Supply

3P, 380V, 50Hz

Total Weight(H100m)

8724 kg

17734 kg



Competitive Advantage:



1.with overload

2.with balance device

3.moving synchronize device

4.with anti-falling safety device

5.with constant speed safety device

6.with hand-operation landing equipment
