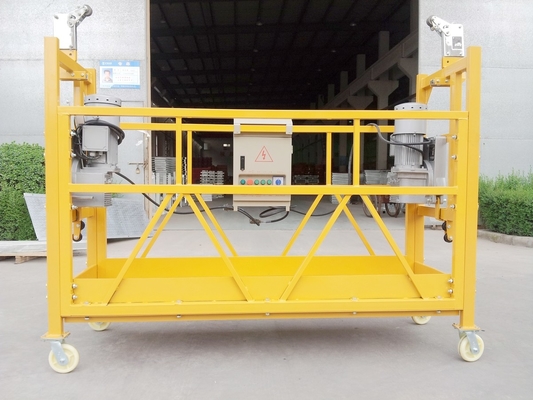

High Strength Aluminum Suspended Working Platform ZLP700 With 2 Meters Platform

Large Image : High Strength Aluminum Suspended Working Platform ZLP700 With 2 Meters Platform Get Best Price

Product Details:

Place of Origin:	Wuxi,China
Brand Name:	SHENXI
Certification:	CE,SGS
Model Number:	ZLP700

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD2300
Packaging Details:	Plywood cage
Delivery Time:	5 days
Payment Terms:	T/T
Supply Ability:	3000 sets/ month

Contact Now

Detailed Product Description

High Light:

adjustable work platform

suspended access equipment

High Strength Aluminum Suspended Working Platform ZLP700 With 2 Meters Platform

Type				ZLP700
Rated Capacity				700KGS
Rated Lifting Speed				9-11m/min
Wire Rope				8.6mm-4*31 (Fasten Brand)
Hoist		Type		LTD6.3
		Rated Lifting Force		8KN
		Electrical Motor	Type	YEJ-90L-4D
			Power	1.5KW*2
			Voltage	220V～450V
			Frequency	50Hz～60Hz
			Rotation Speed	1420rpm
			Brake Toque	15KN
Safety Lock		Type		LSB30
		Permission Force of Impact		30KN
		Looking cable distance		＜ 100mm
Platform dimension L × W × H ( mm )				2000 × 690 × 1460
Weight of Suspension mechanism				375KGS
Counter weight				900KGS
Weight of Lifting Parts	Steel Platform			330KGS
	Alloy aluminum Platform			220KGS

Competitive Advantage:
-Made of high strength aluminum alloy
-Powered by new motor system
-A suspended access platform with sufficient capacity to carry huge load.
-Access to any manner of buildings or constructions
-Size of platform can be adjusted on request
-Used mainly for maintenance and construction work concerning unapproachable buildings or objects such as huge tanks, ships, dams, etc.
