Alloy Aluminum Scaffold Suspended Working Platform For Building Facade Maintenance

Large Image : Alloy Aluminum Scaffold Suspended Working Platform For Building Facade Maintenance Get Best Price

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	SHENXI
Certification:	CE,SGS
Model Number:	ZLP630

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD3000
Packaging Details:	Plywood case, Carton, Steel Belt
Delivery Time:	5 Days
Payment Terms:	T/T, L/C
Supply Ability:	4000-5000 sets per month

Contact Now

Detailed Product Description

High Light:

suspended access cradles

suspended access equipment

Alloy Aluminum Scaffold Suspended Working Platform For Building Facade Maintenance

Parameters:

Type				ZLP630
Rated Capacity				600KGS
Rated Lifting Speed				9-11m/min
Wire Rope				8.6mm-4*31 (Fasten Brand)
Hoist		Type		LTD6.3
		Rated Lifting Force		8KN
		Electrical Motor	Type	YEJ-90L-4D
			Power	1.5KW*2
			Voltage	220V～450V
			Frequency	50Hz～60Hz
			Rotation Speed	1420rpm
			Brake Toque	15KN
Safety Lock		Type		LSB30
		Permission Force of Impact		30KN
		Looking cable distance		＜ 100mm
Platform dimension L × W × H ( mm )				6000 × 690 × 1460
Weight of Suspension mechanism				375KGS
Counter weight				900KGS
Weight of Lifting Parts	Steel Platform			480KGS
	Alloy aluminum Platform			396KGS

Competitive Advantage:
-Made of high strength aluminum alloy
-Powered by new motor system
-A suspended access platform with sufficient capacity to carry huge load.
-Access to any manner of buildings or constructions
-Size of platform can be adjusted on request
-Used mainly for maintenance and construction work concerning unapproachable buildings or objects such as huge tanks, ships, dams, etc.

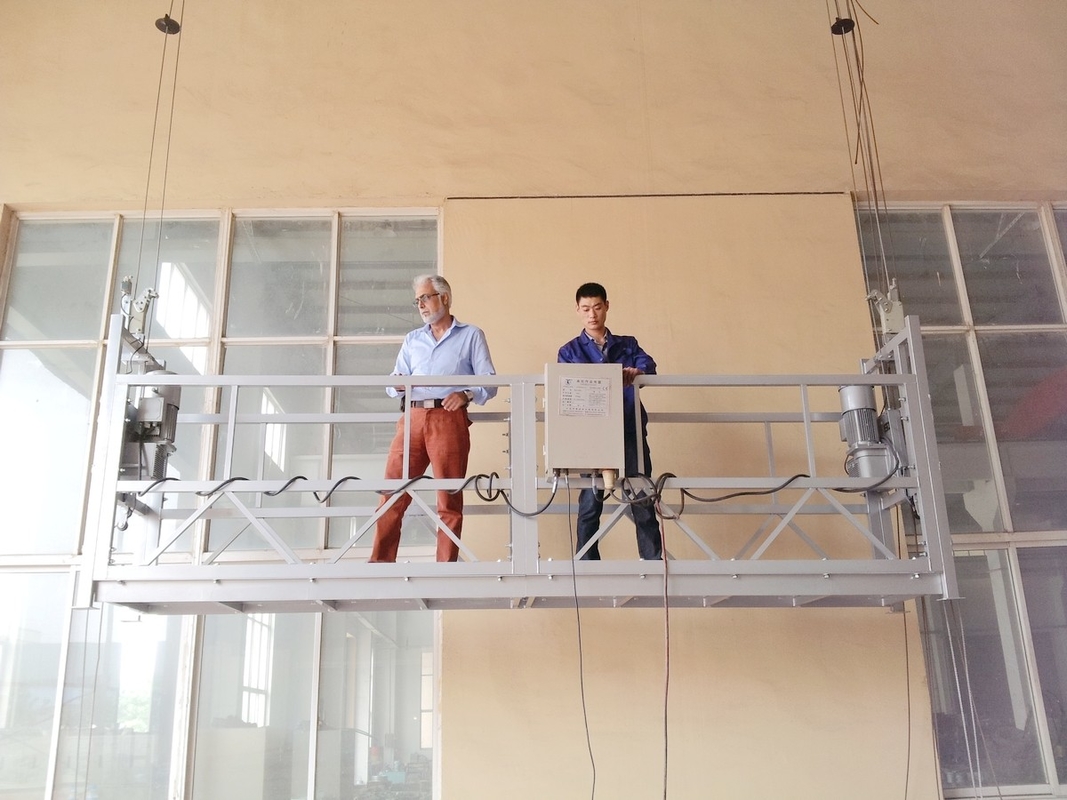

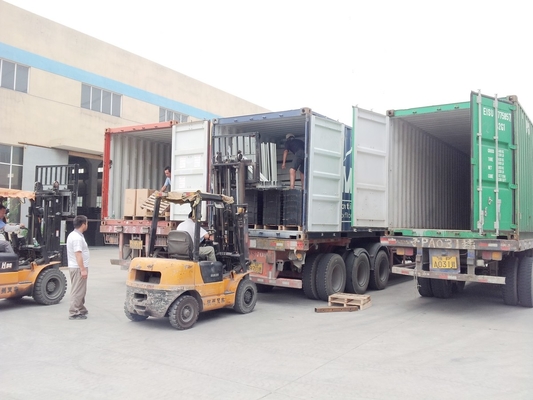

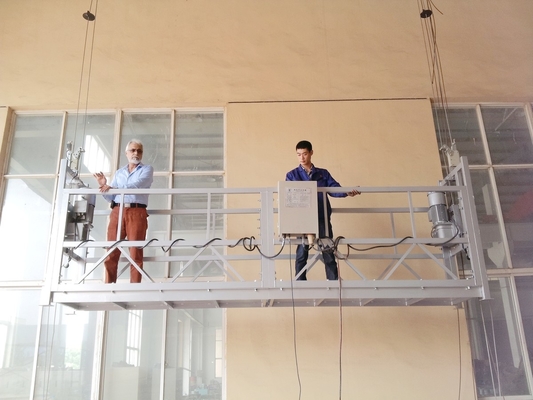

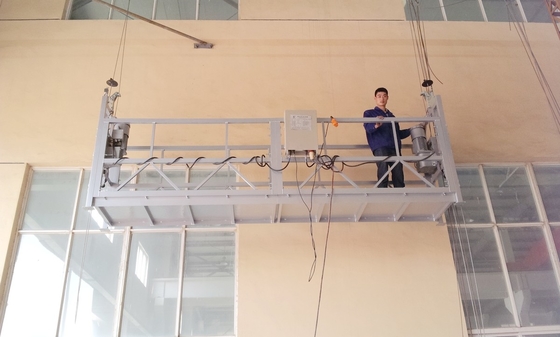

Factory & Projects:

Alloy Aluminum Scaffold Suspended Working Platform For Building Facade Maintenance 0
