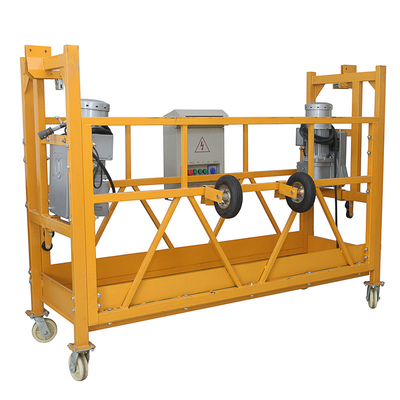

Yellow Steel Suspended Work Platform 2 Meters ZLP500 With 3 Phase Motor

Large Image : Yellow Steel Suspended Work Platform 2 Meters ZLP500 With 3 Phase Motor Get Best Price

Product Details:

Place of Origin:	Wuxi, Chian
Brand Name:	SHENXI
Certification:	CE,SGS,ISO9001
Model Number:	ZLP500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD3000
Packaging Details:	Plywood case
Delivery Time:	Accroding to order quantity
Payment Terms:	T/T
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

High Light:

hanging scaffold systems

suspended access equipment

Yellow Steel Suspended Work Platform 2 Meters ZLP500 With 3 Phase Motor

A kind of Temporarily Installed Suspended Access Equipment, also known as Suspended Platform or Temporary Access Equipment, is a lightweight aluminum-made object capable of carrying persons onto a certain height so as to facilitate the aerial work, such as maintenance, decoration, cleaning, etc.

It is easy for operation, flexible for moving, reliable in safety. Besides, it is not necessary to build scaffolding in the construction, the efficiency will be promoted and the cost will be reduced. Therefore, Shenxi ZLP series versatile knock-down platforms provides workers safer, easier and more efficient platform access.

Specifications:

Item				Parameters
Rated capacity				500 kg
Rated speed				9.6 m/min
Platform length				2.5m*2
Steel rope				4*31-8.3mm
Hoist	Hoist model			LTD5
	Rated lifting force			5 KN
	Motor	Model		YEJ90L-4
		Power		1.1 KW
		Phase		3 Phase
		Speed		1420 r/m
		Brake force moment		15 Nm
Safety lock	Configuration			Anti-tilting
	Permission force of impact			30 KN
	Locking Cable Distance			＜100mm
	Locking Cable Angle			3°～8°
Suspension mechanism	Front beam overhang			1.3-1.7 m
	Height adjustment			1.365 -1.925 m
Weight	Lifting part (including hoist, safety lock and electric control system)		Steel Platform	400 kg
			Aluminum platform	290 kg
	Suspension mechanism			310kg
	Counter weight			750 kg
