Aluminum Alloy Hydraulic Lift Platform Trolleys AC 220V / 50HZ Rated Load 125 kg

I'm Online Chat Now
Certification
China Jiangsu Shenxi Construction Machinery Co., Ltd. certification
China Jiangsu Shenxi Construction Machinery Co., Ltd. certification
Good quality, Good price and Service, Wish business grow better and better.

—— Savali- From Russia

Shenxi company does business and products with full passionate, they have full ability to do custom-made and research new products.

—— Rajan-From Brazil

Aluminum Alloy Hydraulic Lift Platform Trolleys AC 220V / 50HZ Rated Load 125 kg

Aluminum Alloy Hydraulic Lift Platform Trolleys AC 220V / 50HZ Rated Load 125 kg
Aluminum Alloy Hydraulic Lift Platform Trolleys AC 220V / 50HZ Rated Load 125 kg

Large Image :  Aluminum Alloy Hydraulic Lift Platform Trolleys AC 220V / 50HZ Rated Load 125 kg Get Best Price

Product Details:
Place of Origin: WUXI, CHINA
Brand Name: SHENXI
Certification: CE & SGS
Model Number: GTWY
Payment & Shipping Terms:
Minimum Order Quantity: One set
Packaging Details: Standard
Delivery Time: 8 working days
Payment Terms: T/T & L/C
Supply Ability: 120 sets per month
Detailed Product Description
High Light:

hydraulic scissor lift

,

mobile hydraulic platform

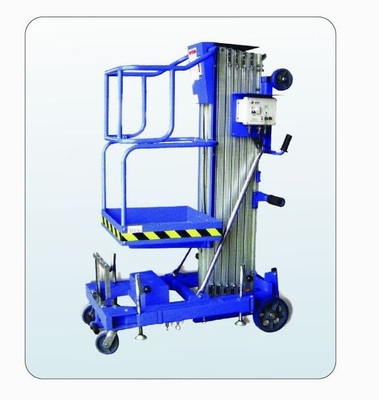

Aluminum Alloy Hydraulic Lift Platform Trolleys AC 220V / 50HZ Rated Load 125 kg



Descrition:

 This newly designed product is made of the high strength aluminum alloy which minimum the deviation and swing of the lifting platform. As light as it is, it can display its best lifting capability in a limited space to facilitate the single aerial work.
  Application: used in factory, hotel, mansion, store, station, airport, stadium, etc.
  Main Usages: for aerial work such as the installation and maintenance for electric networks, lighting equipments, overhead pipelines and the single work for aerial cleaning
  Power options; AC 220V (standard configuration), AC 380V power supply, DC power supply and manual pump.

    -rigid aluminum alloy mast

-light total weight, ease of movement

-only one person needed to operate it

-idler pulley installed between masts, which guarantees a stable raise and lower

-compact lifting mechanism, handy for all narrow corners, within a workplace

-dual protection supporting structure makes it solid and safe while in operation



Specifications:



Product
Name

Model

Max height of platform
(m)

Maximum opera

ting altitude platform
(m)

Rated
Load
(kg)

Lifting time
(m)

Power
Voltage
V/HZ

Power
(KW)

Quality
(kg)

Dimensions
(m)

Mobile lifting platform aluminum alloy
(Single mast)

GTWY4-100

4

5.7

125

0.51*0.55

AC220/50HZ

0.75

185

1.05*0.88*1.70

GTWY6-100

6

7.7

125

0.65*0.61

AC220/50HZ

0.75

210

1.20*0.88*1.70

GTWY8-100

8

9.7

125

0.65*0.61

AC220/50HZ

0.75

220

1.20*0.88*1.98

Mobile lifting platform aluminum alloy
(double mast)

GTWY6-200S

6

7.7

200

1.36*0.61

AC220/50HZ

1.5

320

1.48*0.9*2.06

GTWY7-200S

7

8.7

200

1.36*0.60

AC220/50HZ

1.5

335

1.48*0.9*2.06

GTWY8-200S

8

9.7

200

1.36*0.60

AC220/50HZ

1.5

385

1.48*0.9*2.06

GTWY9-200S

9

10.7

200

1.36*0.60

AC220/50HZ

1.5

450

1.48*0.9*2.06

GTWY10-200S

10

11.7

200

1.36*0.60

AC220/50HZ

1.5

490

1.48*0.9*2.06

GTWY12-200S

12

13.7

200

1.46*0.60

AC220/50HZ

1.5

560

1.58*0.9*2.06

Mobile lifting platform aluminum alloy
(Three-mast)

GTWY13-250S

13

14.7

250

1.56*0.80

AC220/50HZ

1.5

920

1.69*1.13*2.48

GTWY14-250S

14

15.7

250

1.56*0.80

AC220/50HZ

1.5

980

1.69*1.13*2.48

Mobile lifting platform aluminum alloy
(Multi-mast)

GTWY16-160

16

17.7

150

1.48*0.80

AC220/50HZ

1.5/

0.75

1400

2.26*1.2*2.08

GTWY18-160

18

19.7

150

1.48*0.80

AC220/50HZ

1.5/

0.75

1500

2.26*1.2*2.18
