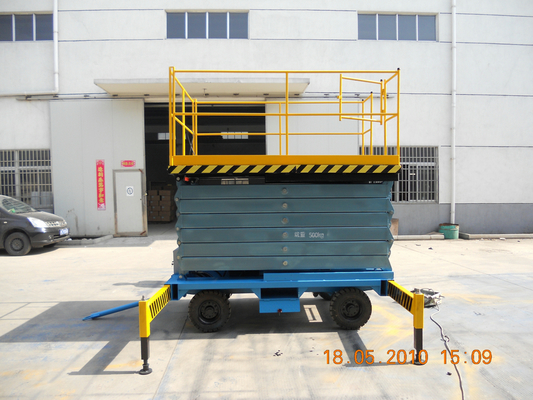

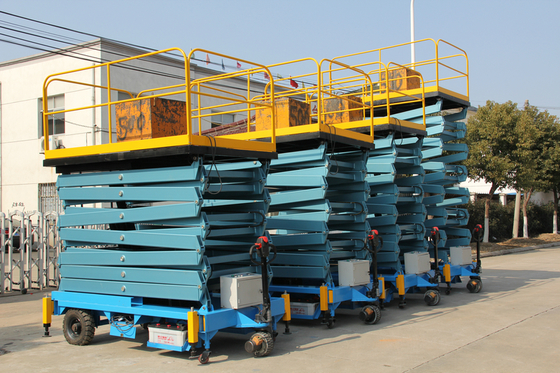

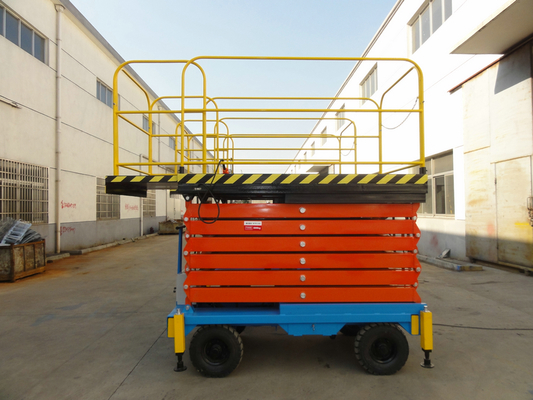

SJY 1-9 1000 Kg Telescopic Aerial Work Platform for Stations, Public Buildings

SJY 1-9 1000 Kg Telescopic Aerial Work Platform for Stations, Public Buildings
SJY 1-9 1000 Kg Telescopic Aerial Work Platform for Stations, Public Buildings SJY 1-9 1000 Kg Telescopic Aerial Work Platform for Stations, Public Buildings SJY 1-9 1000 Kg Telescopic Aerial Work Platform for Stations, Public Buildings SJY 1-9 1000 Kg Telescopic Aerial Work Platform for Stations, Public Buildings

Large Image :  SJY 1-9 1000 Kg Telescopic Aerial Work Platform for Stations, Public Buildings Get Best Price

Product Details:
Place of Origin: WUXI, CHINA
Brand Name: SHENXI
Certification: CE & SGS
Model Number: SJY
Payment & Shipping Terms:
Minimum Order Quantity: One set
Packaging Details: Standard
Delivery Time: 10 working days
Payment Terms: T/T & L/C
Supply Ability: 180 sets per month
Detailed Product Description
High Light:

telescopic aerial work platform

,

elevated work platform

SJY 1-9 1000 Kg Telescopic Aerial Work Platform for Stations, Public Buildings



Descrition:

 It is widely used in the industries and areas that need to work high above the ground such as in the stations, ports and public buildings. And it is characterized of convenient movement, simple operation, wide working area and good balance, etc. Even in the places of uneven ground, this platform can be supported by either four legs or one leg for your convenience

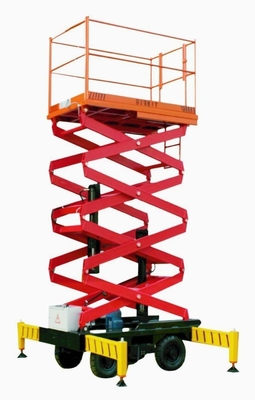

  It is a mechanical device of linked, folding supports in a criss-cross 'X' pattern, a special kind of aerial work platform ideal for indoor and outdoor construction and maintenance or installation applications with firm, level surfaces. Scissor lift access platform can offer you unmatched performance and versatility when working at height and can significantly boost productivity



Key Features of Scissors Aerial Work Platform

- a large load-bearing surface in scissor pivot areas

-safety device installed against overweight and hydraulic pipe cracking

-superior stability in operation

-made of rigid steel

-urgent descent alarm

-ease of movement and storage



Specifications:



Model

Rated load
kg

Max height
mm

Min height
mm

Table size
mm

Elevating time
s

Power of motor
kw

Voltage
v

Weight of whole
kg

Work

SJY 0.3-3

300

3000

850

1300×850

16

1.5

380v/50hz

400

Manual

SJY 0.5-4.5

500

4500

980

1300×850

31

1.5

380v/50hz

560

Manual

SJY 0.3-6

300

6000

950

1780×880

54

1.5

380v/50hz

750

Manual

SJY 0.5-6

500

6000

950

1780×880

49

1.5

380v/50hz

750

Manual

SJY 0.5-7.5

500

7500

1400

1800×1000

62

2.2

380v/50hz

1150

Manual

SJY 0.3-9

300

9000

1350

1800×1000

72

2.2

380v/50hz

1200

Manual

SJY 0.5-9

500

9000

1550

1800×1000

81

2.2

380v/50hz

1260

Manual

SJY 1-9

1000

9000

1550

2100×1150

55

4

380v/50hz

1850

Manual

SJY 0.3-11

300

11000

1600

2100×1150

73

3

380v/50hz

1320

Manual

SJY 0.5-11

500

11000

1600

2100×1150

80

3

380v/50hz

1380

Manual

SJY 0.3-12

300

12000

1750

2450×1350

85

3

380v/50hz

1700

Manual

SJY 0.5-12

500

12000

1750

2450×1350

90

3

380v/50hz

1850

Manual

SJY 0.3-14

300

14000

1900

2450×1350

98

4

380v/50hz

2200

Manual

SJY 0.5-14

500

14000

1900

2450×1350

120

4

380v/50hz

2500

Manual

SJY 0.3-16

300

16000

1950

2500×1500

130

5.5

380v/50hz

2600

Manual
