High Light: | loading dock levelers,mobile loading dock |
---|

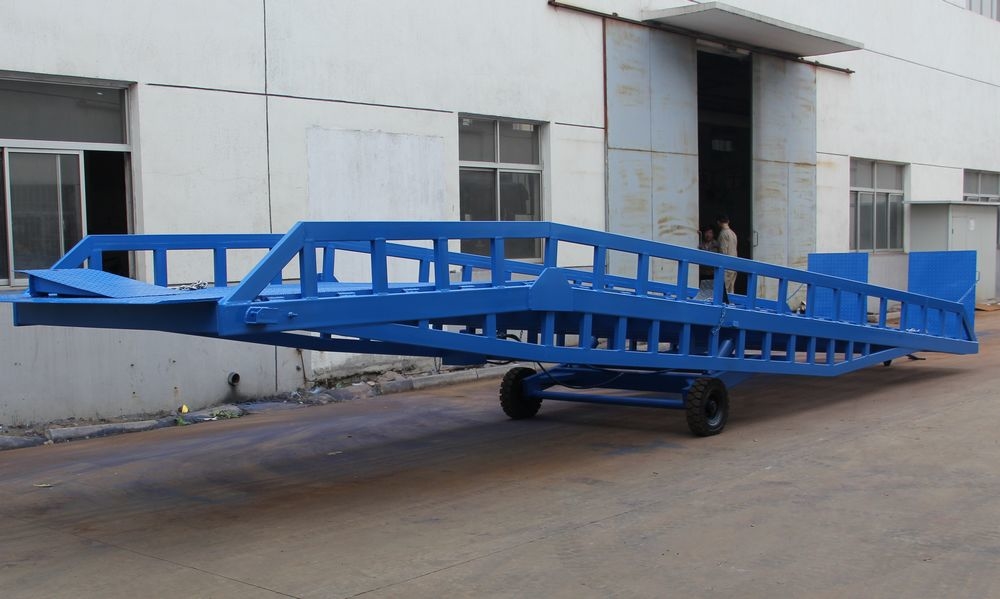

DCQY10 - 0.6 Mobile Loading Hydraulic Dock Leveler for Rated Load 10t
Specifications:
Common type Deng axle specifications,Model:
Model |
Rated Load |
Platform Size (M) |
Working height (M) |
|||||||
Slop Segment |
Horizontal segment |
Flap |
Tongue plate |
In width |
Outer width |
Min |
Regulation |
top |
||
DCQY6-0.8 |
6000kgs |
6 |
2.2 |
1 |
0.3 |
2 |
2.08 |
1 |
0.8 |
1.8 |
DCQY8-0.8 |
8000kgs |
7 |
2.2 |
1 |
0.3 |
2 |
2.1 |
1 |
0.8 |
1.8 |
DCQY10-0.8 |
10000kgs |
7.5 |
2.2 |
1 |
0.3 |
2 |
2.1 |
1 |
0.8 |
1.8 |
Special rules-based board axle specifications,Model:
Model |
Rated Load |
Platform Size (M) |
Working height (M) |
|||||||
Slop Segment |
Horizontal segment |
Flap |
Tongue plate |
In width |
Outer width |
Min |
Regulation |
top |
||
DCQY8-0.6 |
8000kgs |
8.6 |
3.5 |
1 |
0.3 |
2 |
2.1 |
1.2 |
0.6 |
1.8 |
DCQY10-0.6 |
10000kgs |
9.5 |
3.5 |
1 |
0.3 |
2 |
2.1 |
1.2 |
0.6 |
1.8 |
DCQY10-0.8 |
10000kgs |
8 |
3.5 |
1 |
0.3 |
2.3 |
2.1 |
1.2 |
0.6 |
1.8 |
Descrition:
The movable hydraulic dock lever is a kind of assistant equipments of fork vehicles for cargo loading and its height can be adjusted as per the height of the carriage. With such equipment, the fork vehicle can drive directly into the carriage so as to loading and unloading goods in batch. In such a quick working process, only one worker is needed, thus the labor is reduced while the work efficiency is improved with a larger economic benefit.
Product Characteristics
·Its platform is made of specially designed rhombic grid board with a high strength and will not become deformed after a long time of usage. And this rhombic net structure guarantees an excellent antiskid property of the platform to enable a better climbing and controllable properties of the fork vehicle and makes it normally running even in stormy and snowy days.
·Its chain, the length of which is adjustable, can be easily hooked to the truck, making the dock lever closely connected to the truck.
·Adopting the manual hydraulic dump as the power source, the height of the dock lever can be easily adjusted without needing the outside power source.
·The equipped braking lining can effectively prevent the movement of the dock lever when loading and unloading.
