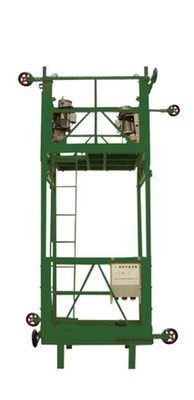

ZLT600 Suspended Elevators Installation Platform with Speed 8 - 10 m/min

ZLT600 Suspended Elevators Installation Platform with Speed 8 - 10 m/min
ZLT600 Suspended Elevators Installation Platform with Speed 8 - 10 m/min

Large Image :  ZLT600 Suspended Elevators Installation Platform with Speed 8 - 10 m/min Get Best Price

Product Details:
Place of Origin: WUXI, CHINA
Brand Name: SHENXI
Certification: CE & SGS
Model Number: ZLT600
Payment & Shipping Terms:
Minimum Order Quantity: One set
Packaging Details: Standard
Delivery Time: 5-7 working days
Payment Terms: T/T & L/C
Supply Ability: 100-150 sets per month
Detailed Product Description
High Light:

aluminium access platforms

,

access working platforms

ZLT600 Suspended Elevators Installation Platform with Speed 8 - 10 m/min



Descrition:

It is a kind of special suspended access equipment, powered by advanced motor systems. The double-floor structure helps carry more loads to better carry out the elevator installing and repair work



Features of ZLT600 Double Layer Suspended platform for Elevator Installation

-easy to handle and install

-no need to install extra scaffolding

-excellent working efficiency

- manufactured to the latest GB19155-2003 National Standard

- minimal space is required for transportation and storage



Specifications:



Name

Parameters

Rated Capacity

600kg

Rated Lifting Speed

8-10m/min

Platform DimensionL × W × H (mm )

1360╳1360╳3700

Wire Rope

Special steel wire rope φ8.6

Hoist

Rated Lifting Force

7.84KN

Motor

Type

YEJ100L-4

Power

2.2KW

Voltage

380V

Speed

1420rpm

Brake Torque

15Nm

Safety lock

Permission Force of Impact

30KN

Lock justice point of view

3°-8°

Weight

650kg

Distance between main tracks (mm)

L1≥1700mm

Width of lifting machine room(mm)

L2=2200-2400mm

Distance between the top point and floor(mm)

L3=1210mm
