ZLT250 250kg Steel Wire Rope Suspended Elevators Installation Platform
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | aluminium access platforms,access working platforms |
||
|---|---|---|---|

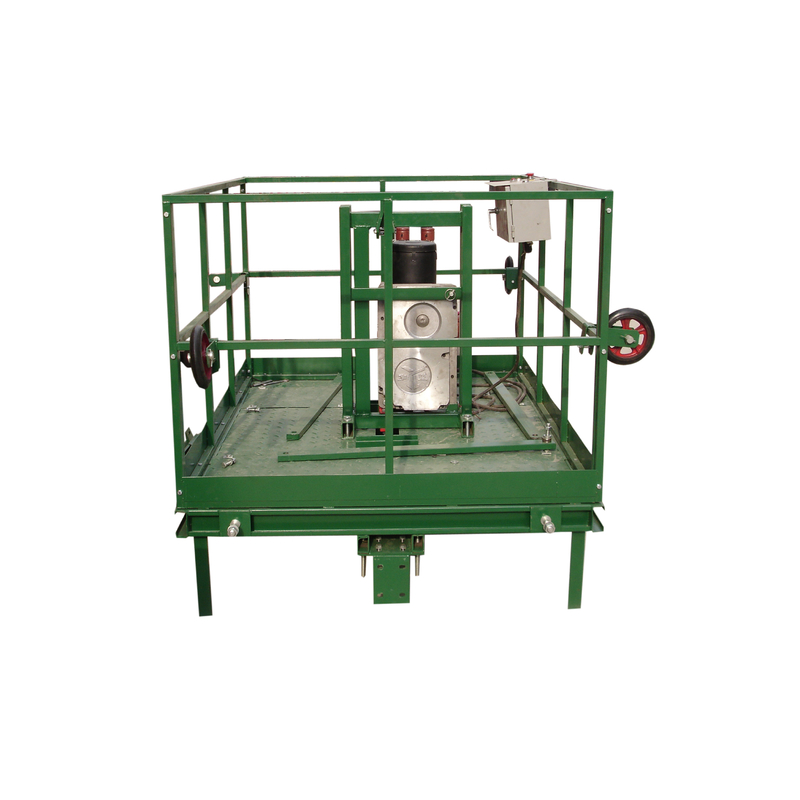

ZLT250 250kg Steel Wire Rope Suspended Elevators Installation Platform
Descrition:
It is a kind of special suspended access equipment powered by advanced motor systems. Such kind of temporary access platform is particularly designed for installing and repairing elevators of high buildings.
Key Features of ZLT250 Single Layer Suspended platform for Elevator Installation
-easy to handle
-safety devices installed
-no need to install extra scaffolding
-excellent working efficiency
- manufactured to the latest GB19155-2003 National Safety Standard
- minimal space is required for transportation and storage
- relatively low self-weight
Specifications:
|
Name |
Parameters |
||
|
Rated Capacity |
250kg |
||
|
Rated Lifting Speed |
8-10m/min |
||
|
Platform DimensionL × W × H (mm ) |
1360╳1360╳3700 |
||
|
Wire Rope |
Special steel wire rope φ8.6 |
||
|
Hoist |
Rated Lifting Force |
7.84KN |
|
|
Motor |
Type |
YEJ100L-4 |
|
|
Power |
2.2KW |
||
|
Voltage |
380V |
||
|
Speed |
1420rpm |
||
|
Brake Torque |
15Nm |
||
|
Safety lock |
Permission Force of Impact |
30KN |
|
|
Lock justice point of view |
3°-8° |
||
|
Weight |
250kg |
||
|
Distance between main tracks (mm) |
L1≥1700mm |
||
|
Width of lifting machine room(mm) |
L2=2200-2400mm |
||
|
Distance between the top point and floor(mm) |
L3=1210mm |
||
