400 kgs Rated Load Pedal Rope Suspended Platform with Hoist 2 - 3 m/min

400 kgs Rated Load Pedal Rope Suspended Platform with Hoist 2 - 3 m/min
400 kgs Rated Load Pedal Rope Suspended Platform with Hoist 2 - 3 m/min 400 kgs Rated Load Pedal Rope Suspended Platform with Hoist 2 - 3 m/min 400 kgs Rated Load Pedal Rope Suspended Platform with Hoist 2 - 3 m/min 400 kgs Rated Load Pedal Rope Suspended Platform with Hoist 2 - 3 m/min

Large Image :  400 kgs Rated Load Pedal Rope Suspended Platform with Hoist 2 - 3 m/min Get Best Price

Product Details:
Place of Origin: Wuxi, china
Brand Name: SHENXI
Certification: CE,SGS
Model Number: ZLJP400
Payment & Shipping Terms:
Minimum Order Quantity: One set
Packaging Details: Standard with plywood case
Delivery Time: 10 working days
Payment Terms: T/T & L/C
Supply Ability: 300 sets per month
Detailed Product Description
High Light:

access working platforms

,

Suspended Rope Platform

400 kgs Rated Load Pedal Rope Suspended Platform with Hoist 2 - 3 m/min



Descrition:

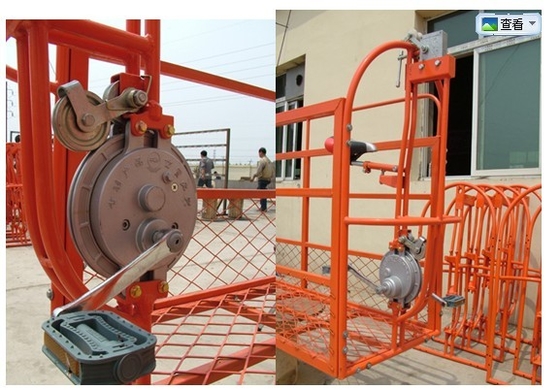

1. The pedal suspended platform is characterized by unique and novel design. The suspended platform goes up and down through operator’s pedal force. Without the pedal force, the platform will be automatically locked.

2. The operator can control the lift speed of the pedal suspended platform that operates smoothly during the whole lifting process. Its lifting height is dependent on the length of wire rope.

3. the machine body of pedal suspended platform has simple and reasonable structure and scientific interior design.

4. the wire rope is inΩ-sharp within the machine body through specific design. The pedal force can be converted into mechanical drag force through negative loking technology

5. apart from the fundamentally configured combination-type suspension arm, there still have scaffolding-type and clamping-type suspension arms for customers to choose

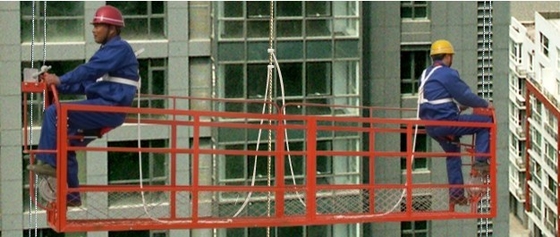

6. user can use the suspended platform from 2m to 6m according to their need. The pedal suspended platform has the advantages of easy dismounting and convenient transportation, which is very suitable for coatin, heat preservation, plastering maintenance, cleaning and other constructions for high-rise building. It is the new mechanical equipment for operations at height.

7. The products of pedal suspended platform can be divided into two types: the pedal suspended platform operated by two people and the one operated by one people.



Specifications:

 Rated load: 400kgs



Model

ZLJP400

Load capacity

Rated load

400kgs

Wire rope

diameter

7mm

Stretching resistance(n/m㎡)

1824-1888

Breaking force(kn)

33.6-37.4

specification

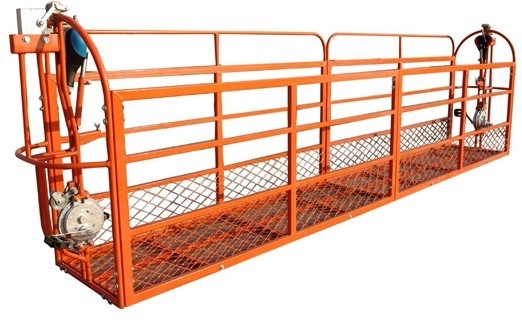

The basic configured platform is 4m, and it is no longer than 6m

Permissible length type(mm)1000.2000.3000

Hoist

Lifting speed(m/min)

2-3

Transmission ratio

17.69

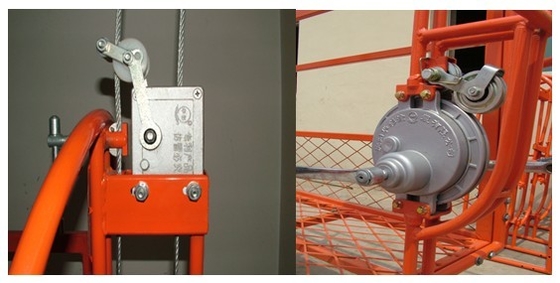

Safety lock

Locking rope angle

3°-8°

Max stopping distance(mm)

60

Lift height of suspended platform (m)

50-150
