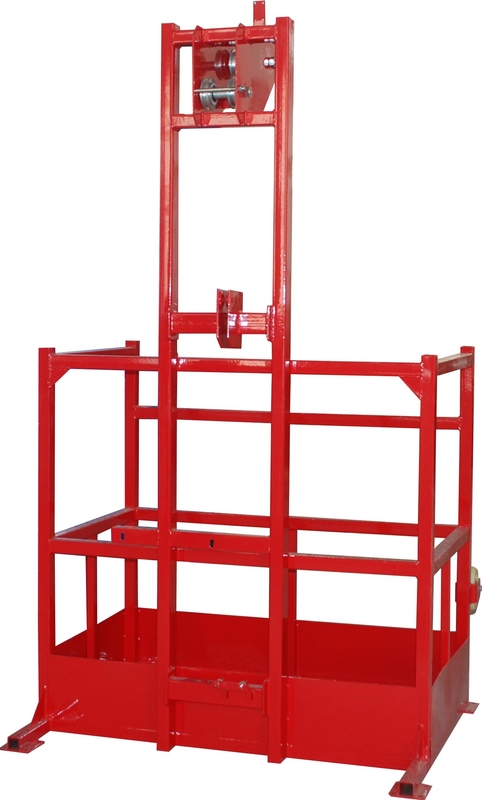

ZLP250 8.3mm Rope Suspended Platform with Lifting Force 3kN

ZLP250 8.3mm Rope Suspended Platform with Lifting Force 3kN
ZLP250 8.3mm Rope Suspended Platform with Lifting Force 3kN

Large Image :  ZLP250 8.3mm Rope Suspended Platform with Lifting Force 3kN Get Best Price

Product Details:
Place of Origin: WUXI, CHINA
Brand Name: SHENXI
Certification: CE & SGS
Model Number: ZLP250
Payment & Shipping Terms:
Minimum Order Quantity: One set
Packaging Details: Standard
Delivery Time: 5-7 working days
Payment Terms: T/T & L/C
Supply Ability: 500-700 sets per month
Detailed Product Description
High Light:

aluminium access platforms

,

Suspended Rope Platform

ZLP250 8.3mm Rope Suspended Platform with Lifting Force 3kN



Descrition:



It is a kind of Suspended Access Equipment, also known as Temporary Access Equipment, widely used for cleaning and maintenance work on the confined areas, such as high buildings, large-size tank, ship, and bridge, etc.

Key features of Single Person Suspended Platform

–single hoisting machine, using centrifugal safety lock

–proper structure, easy to operate, and safety securely guaranteed

–fast to assemble and disassemble, less cost to rigging work

–easy to store



Specifications:



Capacity

250kg

Speed

9.6m/min

Size (mm)

120×70×117

Wire rope

φ8.3

Hoist

Rated lifting force

3kN

Motor

Model

YEJ801-4

Power

1.5kW

Voltage

380V

Rotate speed

1400r/mim

Braking torque

7.5Nm

Safety lock

Rated capacity

>800kg

Lock distance

<100mm

Lock speed

>22m/min

Weight

150kg
