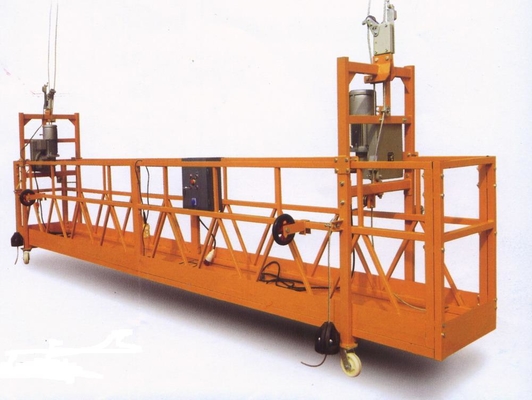

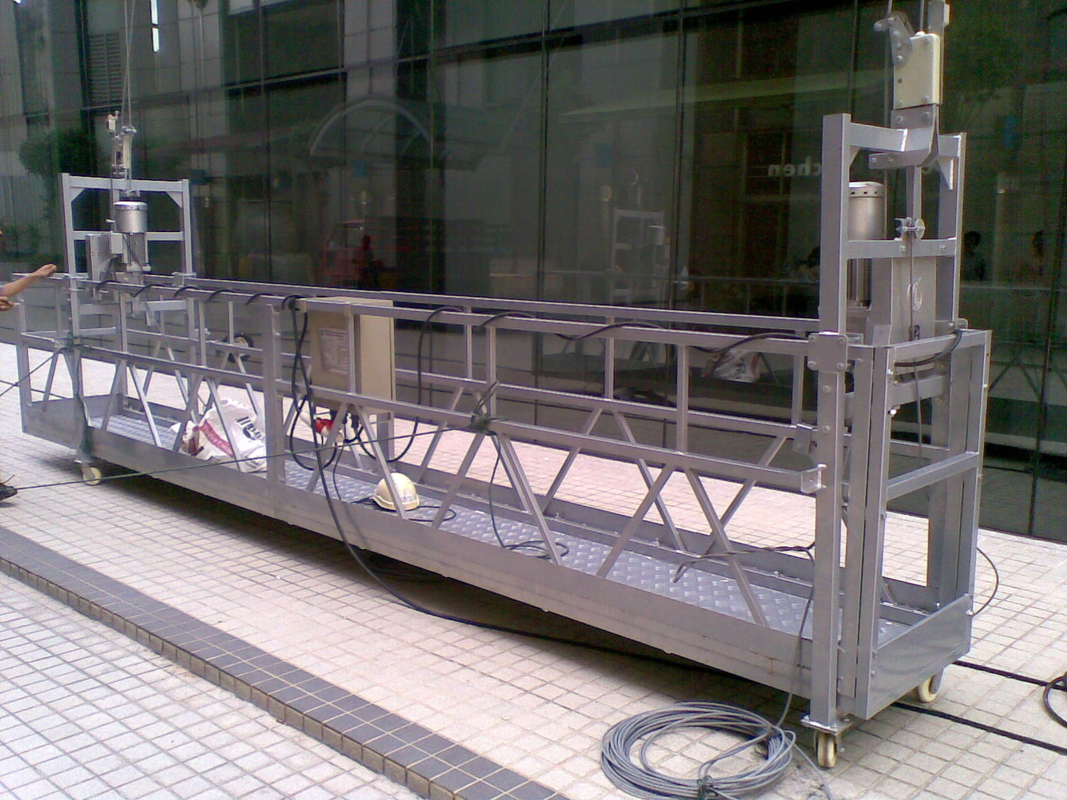

Moveable End Stirrup Suspended Working Platform ZLP630 ZLP800 ZLP1000

Moveable End Stirrup Suspended Working Platform ZLP630 ZLP800 ZLP1000
Moveable End Stirrup Suspended Working Platform ZLP630 ZLP800 ZLP1000 Moveable End Stirrup Suspended Working Platform ZLP630 ZLP800 ZLP1000 Moveable End Stirrup Suspended Working Platform ZLP630 ZLP800 ZLP1000

Large Image :  Moveable End Stirrup Suspended Working Platform ZLP630 ZLP800 ZLP1000 Get Best Price

Product Details:
Place of Origin: Wuxi, China
Brand Name: SHENXI
Certification: ZLP500-1000
Model Number: CE,SGS
Payment & Shipping Terms:
Minimum Order Quantity: One set
Packaging Details: Standard with plywood case
Delivery Time: 15 working days
Payment Terms: T/T & L/C
Supply Ability: 300 sets per month
Detailed Product Description
High Light:

adjustable work platform

,

suspended access cradles

Moveable End Stirrup Suspended Working Platform ZLP630 ZLP630 ZLP630

Descrition:

Special Suspended Platform, also called Special Temporary Access Equipment, is a mobile modular gantry specially designed to meet specific tasks and requirements.
These include: U Type Suspended Platform, Exterior Suspended Platform, Pin-style Platfrom, Moveable End Stirrup Platform, Circle Platform, Gondola, Suspended Chair, Chimney Suspended Platform, and Double Deck Platform.

Applications:

–construction and maintenance work for the building of various profiles
–used for cleaning, decorating, coating on the exterior walls of high buildings
–ideal for construction work in the difficult to access areas, such as chimney,
boiler, barn and pit, etc.

Specifications:




Type

ZLP500

ZLP630

ZLP800

ZLP1000

Rated Capacity

500kg

630kg

800kg

1000kg

Rated Lifting Speed

9-11m/min

9-11m/min

8-10m/min

8-10m/min

Wire Rope Diameter

8.3mm

8.3mm

8.6mm

8.6mm

Hoist

Type

LTD5

LTD6.3

LTD8

LTD10

Rated Lifting Force

4.9kN

6.17kN

7.84kN

9.8kN

Motor

Power

1.1kW×2

1.5kW×2

2.2kW×2

3.0kW×2

Voltage

380V

380V

380V

380V

Frequency

50Hz

50Hz

50Hz

50Hz

Rotation

Speed

1420rpm

1420rpm

1420rpm

1420rpm

Brake Torque

15Nm

15Nm

30Nm

30Nm

Safety Lock

Type

LSB30II

LSB30II

LSB30II

LSB30II

Permission Force of Impact

30kN

30kN

30kN

30kN

Locking Cable Distance

<100mm

<100mm

<100mm

<100mm

Platform Size(mm)

5000×690×1460

6000×690×1460

7500×690×1460

7500×690×1460

Weight of Suspension

310kg

310kg

310kg

310kg

Counter-Weight

750kg

900kg

1000kg

1300kg

Weight of Lifting Part

Steel

460kg

500kg

640kg

650kg

Aluminum

400kg

410kg

510kg

540kg


Competitive Advantage:

–made of rigid aluminum or steel
–suitable for multiple uses
–powered by motor system
–adaptability and practicability
