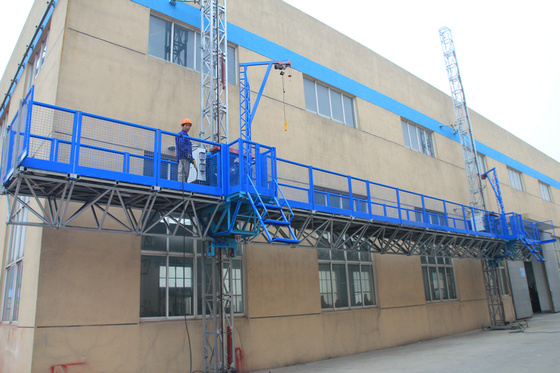

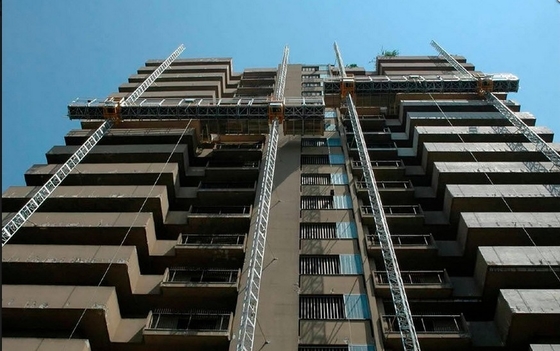

Confortable Mast Climbing Work Platform for Working Height 100 m

NO.

Performance and technical parameters

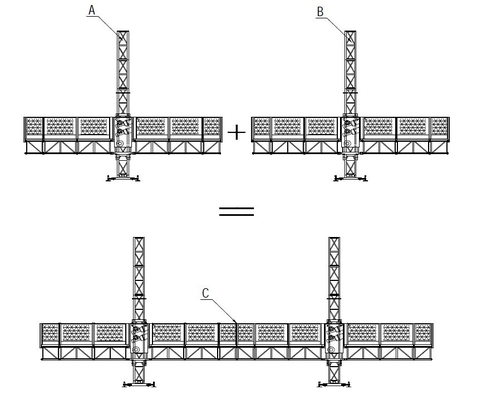

Single mast

Double mast

1

Model

STC100

2

Max capacity (longest length of platform)

1000 kg

1400 kg

3

Max loading workers

3 workers

6 workers

4

Rated speed

8.3 m/min

5

Max working height

150 m

6

Max height of cantilever at the top of mast

5.0 m

7

The longest platform length

8.685 m

23.37 m

8

Width of platform

1.5 m

9

Max width of extend platform

2.5 m

10

The height of first framework adhering to wall

3～4 m

11

Distance of framework

6 m

12

Size of standard mast section

1508×500×500 mm


13


Motor

Model

YZZ132 S₁-4

Output power

5.5 kW

Rated  revolution

1400 r/min

Rated  current

13.5 A/set

14

Brake

Braking  torque

100 N.m

Exciting  voltage

DC 195 V

15

Reducer

Model

TU 65 C/125-63

Transmission ratio/output torque

1:63 / 1300 N.m

16

Power supply

3P,380V,50Hz

Type

Length of platform
(m)

Capacity
(kgs)

Single mast

2.685(2×0.8+1.085)

1600

4.085(2×1.5+1.085)

1500

7.085(4×1.5+1.085)

1200

8.685(2×0.8 + 4×1.5 + 1.085)

1000

Double mast

8.17(4×1.5 + 2.17)

3000

14.17(10×1.5 + 2.17)

2400

17.37(4×0.8 + 8×1.5 + 2.17)

2000

20.37(4×0.8 + 10×1.5 + 2.17)

1700

23.37(4×0.8 + 10×1.5 + 2.17)

1400
